Feedback needed on my Monster Truck track design

Spartacus0351 Tuesday, 5/7/2024

Calling All Monster Truck Fans! Feedback Needed on My Custom Track DesignHey everyone at Redline Derby! I'm a huge Monster Truck enthusiast, and I'm finally building my own custom track for epic diecast races! I'm here to share my rough draft design and would love to hear your feedback and suggestions.

Track Specs:

 * Scale: 1:64 Monster trucks

 * Materials: I'm contemplating getting a 3D printer and printing my own track.

 * Inspiration: My inspiration came from watching real monster truck races. And watch 3D Botmaker and realizing that there are no races similar that use monster trucks

Track Layout:

 * I'm limited on space, so everything will be built up from a 4x8 piece of plywood. Elevated by 2x4s to support the weight of the track and trucks.

 * Starting at a height of ~6' tall, it drops down to an early jump, and then Into the first 180° (or 225°) turn. Going back to the other side, where it'll have 2 90° turns, where it'll go into the next straight away. After the last big turn, it'll have a down ramp into the final jump finish line.

 * I haven't found any other side by side downhill courses like this. It'll be a challenge for sure, that's why I'm asking for help

Feedback Wanted!

I'm still in the early stages of building this track, and I'm open to any feedback or suggestions you might have. Here are some specific areas where your input would be appreciated:

 * Functionality: Does the track layout seem fun and challenging for Monster Truck races? Are there any sections that might be difficult to navigate or need adjustments?

 * Safety: Are there any potential dangers for the Monster Trucks on the track (e.g., sharp edges, jumps that are too high)?

 * Aesthetics: Do you have any suggestions for making the track look more visually appealing?

 * Additional Ideas: Do you have any cool ideas for obstacles or challenges I could incorporate?

Thanks in advance for your help! I'm really excited to bring this custom track to life and share some epic Monster Truck races on my new YouTube channel

Looking Forward to Hearing From You!

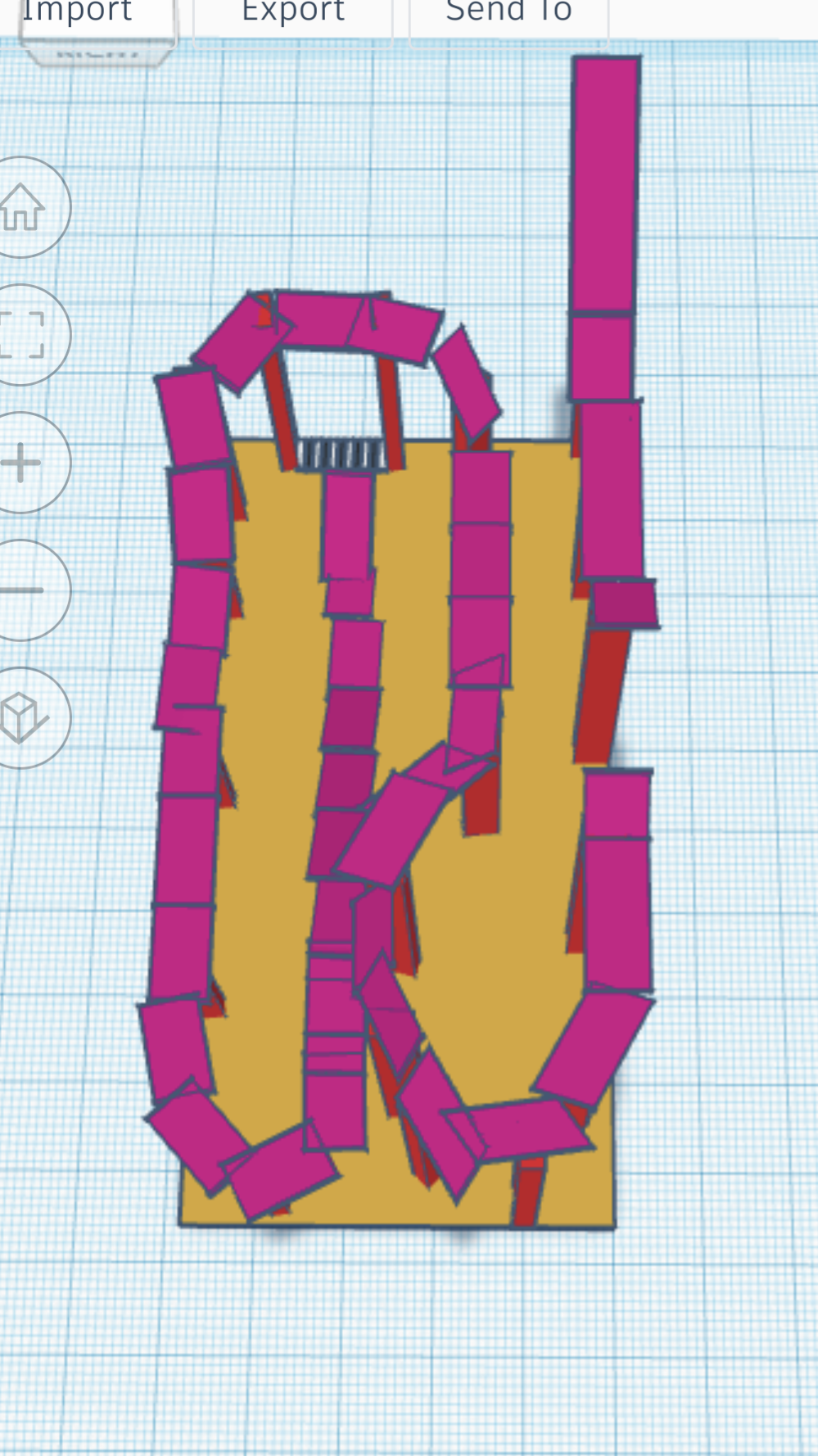

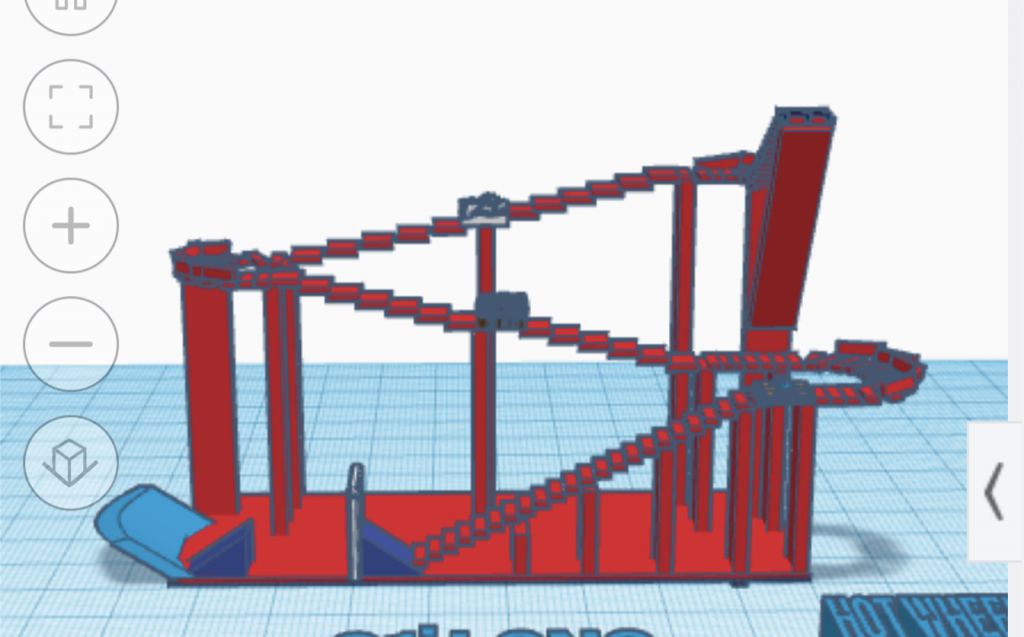

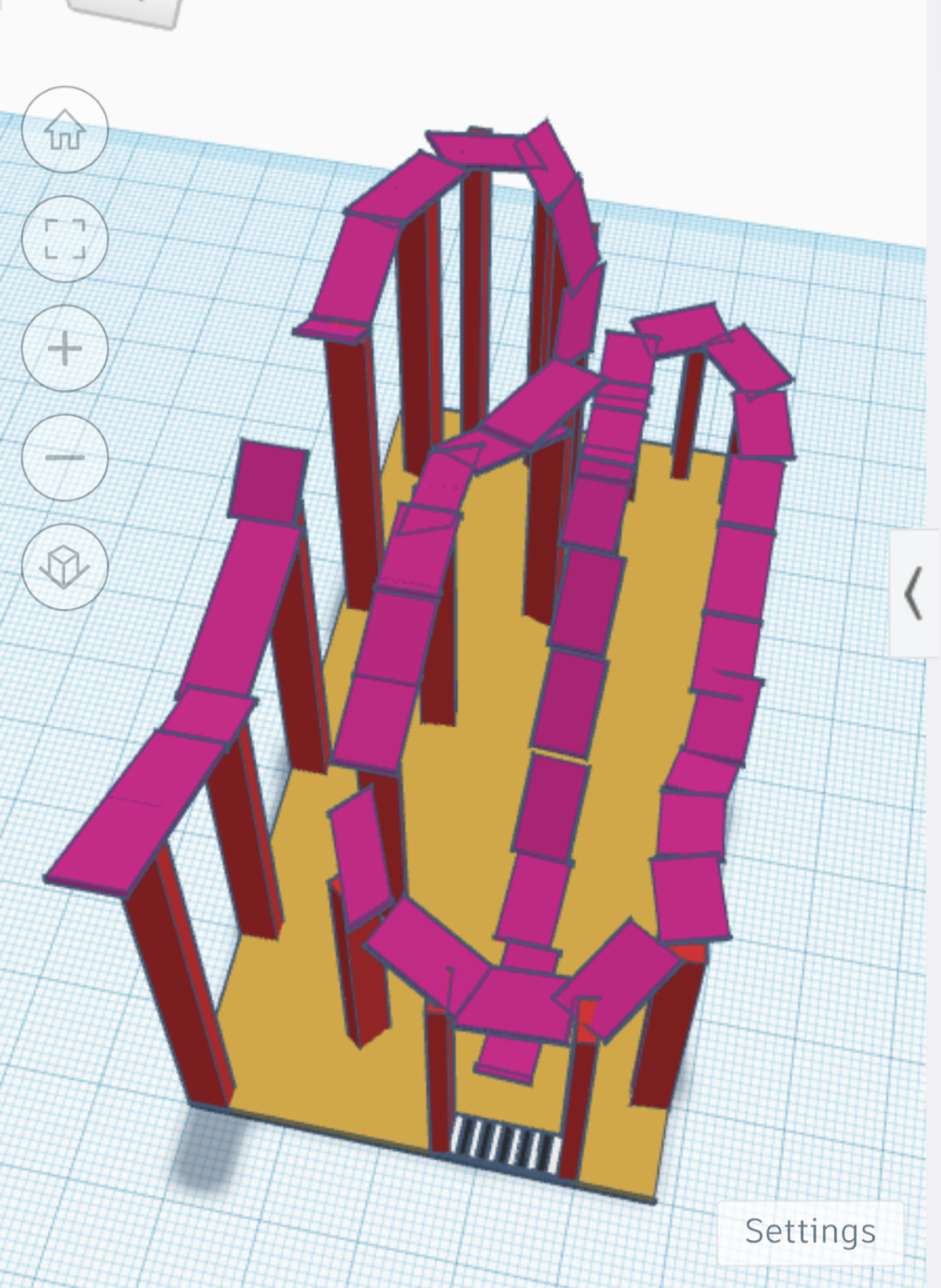

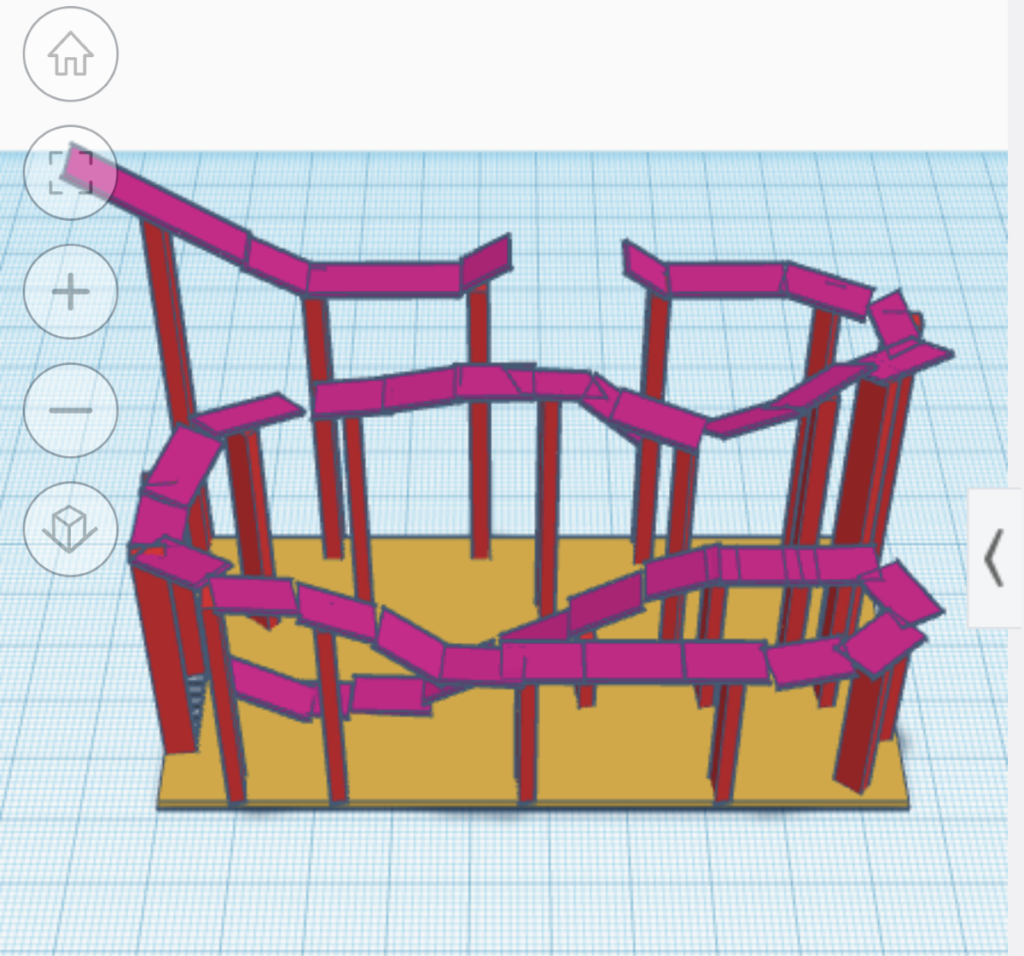

P.S. I know the rough draft is pretty rough. It was the first time using any 3d modeling software, but I think it still shows the idea of waht I'm shooting for.


View member profile
JBlotner42 5/7/24

I like your layout. If you can pull it off it will be amazing!

I have a strong suspicion that the monster trucks will not corner at all like you expect them too. The high CoG will most likely cause the trucks to tip over in the turns. The rubber tires will also cause extreme loss of momentum in the corners. I tested rubber tires on my track with a few "real riders" and the results are clear.

There is a Facebook page that does monster truck races.

Might give you some ideas! Looking forward to what you come up with!

  • Thanks for the Feedback! Hey JBlotner42, thanks a lot for taking the time to leave a comment on my post! I really appreciate your insights. Addressing Concerns: You're absolutely right about the center of gravity (CoG) potentially causing tipping on sharp turns. I hadn't fully considered that yet. That's a valuable point, and I'll definitely need to factor that in when finalizing the design. Clarifying Tire Material: That's interesting to hear about your experience with different tires on your track. Perhaps you meant tires with more aggressive treads or softer materials for better grip, as opposed to standard plastic wheels that come with most diecast Monster Trucks? Exploring Solutions: Regardless of the exact tire material, your point about grip on turns is well-taken. Maybe I can adjust the curves to be banked more steeply to help the trucks navigate them better. I'll also look into alternative materials for the track surface that might offer more traction for better cornering. Thanks for the heads-up about the Facebook group ( I'll definitely check it out for more inspiration and tips from other Monster Truck enthusiasts. I've definitely watched their videos on YouTube. They have built a great track for monster trucks, with a big downward ramp and 2 big jumps. It's great to connect with people who share this passion! I'll keep you updated on my progress and any adjustments I make based on the feedback I receive. Maybe in the future, we can even share ideas and learnings from our respective custom tracks! Thanks again for your comment! One idea I had, was to possibly make the track single truck wide at first. It would definitely be less material, and maybe just do time trails. It would be less exciting (without having side by side racing), but it could be a starting point, and then expand the track later on. It's been hard to find STL files for curved tracks for 2 trucks (equivalent to 4 regular lanes). — Spartacus0351
  • Hey Spartacus0351, So the hard plastic tires are better for drag racing and downhill road courses. Rubber tires of any sort, knobby or textured or even almsot smooth create too much drag/friction on the track and slow the cars down considerably through any corner. As far as maing the turns for monster trucks, I would tend to lean more towards wide turns with a shallow bank and steep downward angel to keep up speed and reduce the effects of the high CoG. — JBlotner42

Cool idea! Have you ever 3d printed before? It has a pretty steep learning curve and the size of the printer you need to print corners is pretty pricey... but you can break the parts up into smaller pieces and mate them together... it can be done, but it will take you some extra time and effort...

I am in the process of building out my 600x600 printer and I am hoping to do large radius corners and longer straight sections.

If it is your passion, go for it and enjoy the ride!

  • Stoopid_Fish_Racing, thanks for your comment! Transparency and Openness: You're right, I haven't actually 3D printed anything before. This is a whole new venture for me, but I'm definitely passionate about creating a cool custom track for my Monster Truck videos. I don't know how to design any track at the moment, so I'm looking online for STL files to print. But it's hard finding track big enough for 2 trucks side by side (equivalent to 4 hot wheels tracks) Addressing Concerns: I appreciate the heads-up about the learning curve and potential cost associated with 3D printing the entire track, especially for large corners. That's something I hadn't fully considered. My other idea was using coragated plastic. It would be cheaper, and I'd be able to make any size track or banked curve I need. Exploring Options: Breaking the track down into smaller, printable sections and then assembling them is a great suggestion! It might take longer, but it could be a more feasible approach for me as a 3D printing beginner. Combining Techniques: Actually, I'm also exploring the possibility of combining 3D printed sections with existing Hot Wheels track pieces and maybe even some Crash Racers elements to create a hybrid track. Shared Passion: It's awesome that you're building your own 600x600 printer! The idea of printing large radius corners and longer straight sections sounds amazing for a custom track. I'd love to see your progress if you're comfortable sharing it. The 3d printing I'm getting in an Ender 3, which i believe only has a print space of ~250x250 Encouragement: Thanks for the encouragement! Even though it might be challenging, I'm definitely going for it and excited about the learning process. — Spartacus0351
  • no worries mate... I have an Ender 3 as my go to printer. Works great most of the time and the few upgrades I made to it were pretty easy and now some of them are standard on the newer models. But you are right, the bed is only capable of small items and that is not easily upgraded. I have not printed any track parts on it for that reason. There are some free printable files on thingiverse... if you decide to go that route. I think I will be using a combination of crash racers, corroplast and frp plastic sheet for my modest test track. — Stoopid_Fish_Racing
View member profile
dr_dodge 5/13/24

I have tested with monster trucks a bunch, and as said, they tend to flip with very little effort.  They also turn into the first tire that hits something, and stall

my off road track

I would bust out the hot glue gun, some cardboard, foam board, and cardstock and mock it up
Start at the bottom straight and work your way up on corner at a time

You can then transfer the design to better materials later


  • I want to start off by saying your track looks really good. The deisgn and and detail look really good. Yes I do agree the trucks can tip and roll easily. But to try to midigate that, Im planning on starting each truck in Hot wheels tracks, and then transition to Crash Racers track. Since crash racers is designed for 2 regular cars, I think it would work perfectly for a monster truck, without moving around too much. Also with the bank turns thats come with crash racers, I think they would work good for bank 180 turns. But yes making a mock up of my course before building is a great idea. thank you — Spartacus0351
View member profile
Chaos_Canyon 5/13/24

I've put monster trucks down my regular tracks before and they can work but here's what I've found

1. You need a steeper than normal slope as the wheels are a solid axle that has a lot of drag, so to give them momentum you need a solid drop

2. As mentioned above, if a wheel touches a side wall or obstacle, they will turn into it very easily and stall/flip/crash

3. Cornering is tough and you will generally need a large bank in the corners to get them round.

4. A good way to guide them in a laned section is to use a barrier under the trucks, rather than side walls.

You can see a few monster trucks runs on my channel. The earlier one is Stuntman Sam running a monster truck down the original canyon and he made it the whole way but after many attempts.

The other track run is at the end of my camper chaos video and while vans towing caravans make it the truck can't make it very far as the track isn't steep enough and you see the wheels wobbling around. Here's that video

In my beach run, I start the trucks in the same place every time and where they end up varies dramatically due to the body roll changing the wheel direction  you could look to secure the axles but then they basically won't turn

Flat Rabbit did a series of monster truck races in a short course and they were fun but it's a short straight track

best of luck with your idea, but I'd also suggest hand building tracks to begin with as it is a lot faster and cheaper to prototype compared the 3D printing

  • Listen to this dude, he knows his stuff! — JBlotner42
  • I have though about some piano wire springs to "dampen" the monster truck body roll, but have not done any good experiments. and the cheap monster trucks behave the same, too — dr_dodge
  • Let me start off by saying thank you for your comment. It feels really good to be able to have this feedback from everyone. I really want to get this idea to come to life. It’s something that I’ve wanted to do for a while, and its different than any other die cast racing I’ve seen before (at least with monster trucks). I just wanted to address a couple of your points, with some of my ideas that I’ve came up with. #1) that slope of the track. I don’t want the trucks going too fast, because I’m trying to replicate Monster Jam racing. So currently I’m going with a 10 degree decline for most of the race. Actually, with that in mind, I do have another track design that I will be posting soon. It’s a little shorter and its about 22’ long, roughly. #2) I feel like with enough speed, I think it might not be too much of an issue. I’m going to be using hot wheels track at the start of the race (2 lanes per truck), and then switch to crash racers (1 lane per truck). Each truck will stay in their own lane for the entire race. I don’t think I’ll be opening up the track, I think it’ll be too wide for the trucks. #3) Yes corning has been as issue for me to figure out. This is my plan so far. For a 90 degree turn, I recently order some tracer racers 90 turns. I’ll get them in a couple days and test them out with different speeds and different entrance angles. I feel like it’ll work. Also, I’ll be getting a couple sets of crash racers for my 180 turns. With my current idea to race two trucks side by side, I was trying to figure out how to make an outer and inner 180 turn. Since crash racers turns are in 5 pieces each, I’m planning on take one piece out from the inner track, and putting it in the outer track. And with that, hopefully it might work. I feel like the banked angle is good (with the right speed), I just need an inner lane and outer lane. And with back-to-back 180 turns, there won’t be too much of specific lane advantage. I very much appreciate the videos you’ve done with Monster trucks going down a track. It further reminds me that its possible to do full tournaments with only monster trucks. I did watch some of Flat Rabbit, his videos have a lot of good elements to them. Just like some other channels, they mostly just do a straight track, or a drag race, with a jump at the end. Which is great, and I enjoy watching them. I’m just want to try something new and different. Thank you. — Spartacus0351
View member profile
Spirit_Of_64 5/13/24

I suggest you get in touch with Russ at Spool Heads!  IDK if they have a website, but they do have a FB page.  They've built a frame for a monster truck focused track(the name of the customer's channel escapes me).  Not only would he have insight on successful track design, he could make something for you and/or sell you files to print stuff yourself!

You could also use the Hot Wheels Mario Kart Rainbow Road for a portion of your track, as it seems to provice some nice action.  Actually, I also recommend binging more videos from the channel linked below.  Flat Rabbit has a ton of monster truck content, and most of their stuff is hand-made.

  • That is a good idea to talk to Russ at Spool heads. I’ve checked out his Facebook and his website, he has a lot of great track pieces and he even has some of his 3d printing files online, and they are editable. The video that I think you are referencing is a video where Russ is talking about a track, he built for OurTime4Adventure. They using race monster trucks down a straight track and it opens up to an arena with multiple jumps (great channel, and has been an inspiration to my ideas). But the new track that Russ built for them is for Mini monster trucks, that can race in a single hot wheel’s lane. So, the whole track is only 2 lanes wide. Which works perfectly for the mini trucks, but I need something a little wider that than. My track needs to be roughly 4 lanes wide, or 2 crash racers track side by side. Also Spool heads track is a little out of budget at the moment. But if the channel takes off, I would definitely consider switching everything to Spool heads. You second comment about using Rainbow Road is a possibility. I’ve seen a couple of channels use that track for Monster Trucks. Even though it isn’t specifically meant for trucks, it still works. I feel like the lanes are even smaller than regular hot wheel tracks, so there is less wobbling, but the trucks don’t get to go that fast since it only has 2 quick 180 turns in it. One channel that I’ve watched, took Rainbow Road, and then extended the track with some regular hot wheel tracks, just to extend the race by 6-8 feet, and then had the finish line from the super 6 lane Raceway. With some modifications, it all worked out. Thank you for you feedback, I really appreciate it. — Spartacus0351
View member profile
dr_dodge 5/14/24

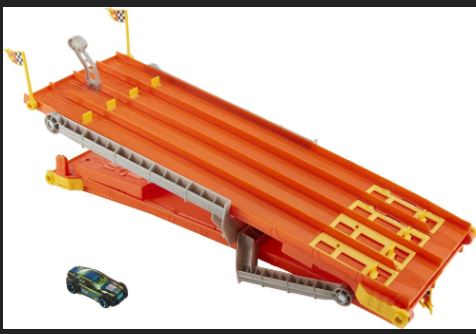

While yard saling I ended up with one of these

I just stripped it out for monster truck launching

I cut off the "flippers" at the end

will launch 2 monster trucks  of 4 cars


and if you haven't seen it

  • That track is called the 4-lane elimination race. I don’t know if its still in production or not, but definitely a good find. I’ve had a couple of different idea of how to start my races. I didn’t want to use the 6-lane wide track that a lot of people use, I wanted something different. So, I’ve came up with 2 different Ideas. My first one is to use the launcher from the hot wheel race crate. Its 4 lanes wide, and Amazon sells that piece individually. I could easy launch 2 trucks side by side with a that piece. My second idea I got from scrolling on Etsy, while looking at customer hot wheels track pieces. I came across a listing called ‘Ultimate Monster Truck Add-On Jam Set | Hot Wheels Compatible’ and it just happens to have a 4 lane start gate, in addition to some extra obstacles that I could use for my track. So, I still don’t know which one I will go with, but I still have some time before I start building. The video you put up from Monster Truck Attitude, is definitely a good channel. He has a lot of excitement and energy in his voice. The way he has built his area and track is really good. Building it like a Monster Jam area and even adding a slight echo to his voice, makes the Monster jam area sound even more realistic, which is great. For me, the track is just a little short. I want more of a downhill race track, but to try to resemble that they would do at a Monster Jam event. It might be hard, but I think with the right angles, banked turns, and with the right speed, it might be doable. — Spartacus0351
  • you got me wanting to try and glue one up. maybe build it like a volcano shape. and yea, the guy above really makes it feel like a stadium event — dr_dodge

I'm here to share my latest project: a brand new, custom-built Monster Truck track! It's been a blast putting it together, but I'm always looking for ways to make it even more epic. My inspiration for this track, was the brand new monster truck track at the world finals in LA. That's where you guys come in!

Here's a quick rundown of the track so far:

 * Starting Ramp: A 10-degree decline to get the trucks pumpin' (starting with hot wheels track)

 * First Turn: Banked double-wide turn for smooth cornering (courtesy of the Trace Racers set)

 * Straightaways: Two 7-foot straights to build up some serious speed

 * Second Turn: Single-lane 180s using Crash Racers track (per truck)

 * Final Jump: 1-foot jump with a 1-foot landing ramp (looking for the sweet spot for epic air!)

Here's where I need your expertise:

 * Decline Angles: Are my current decline angles good, or should I adjust them for more speed or control?

 * Final Jump: What decline angle should I use before the jump for a perfect launch?

 * Decoration Ideas: I'm aiming for a Monster Jam arena vibe - any suggestions for epic decorations?

 * General Feedback: Let me know what you think! Is the track layout exciting? Anything I should add or remove?

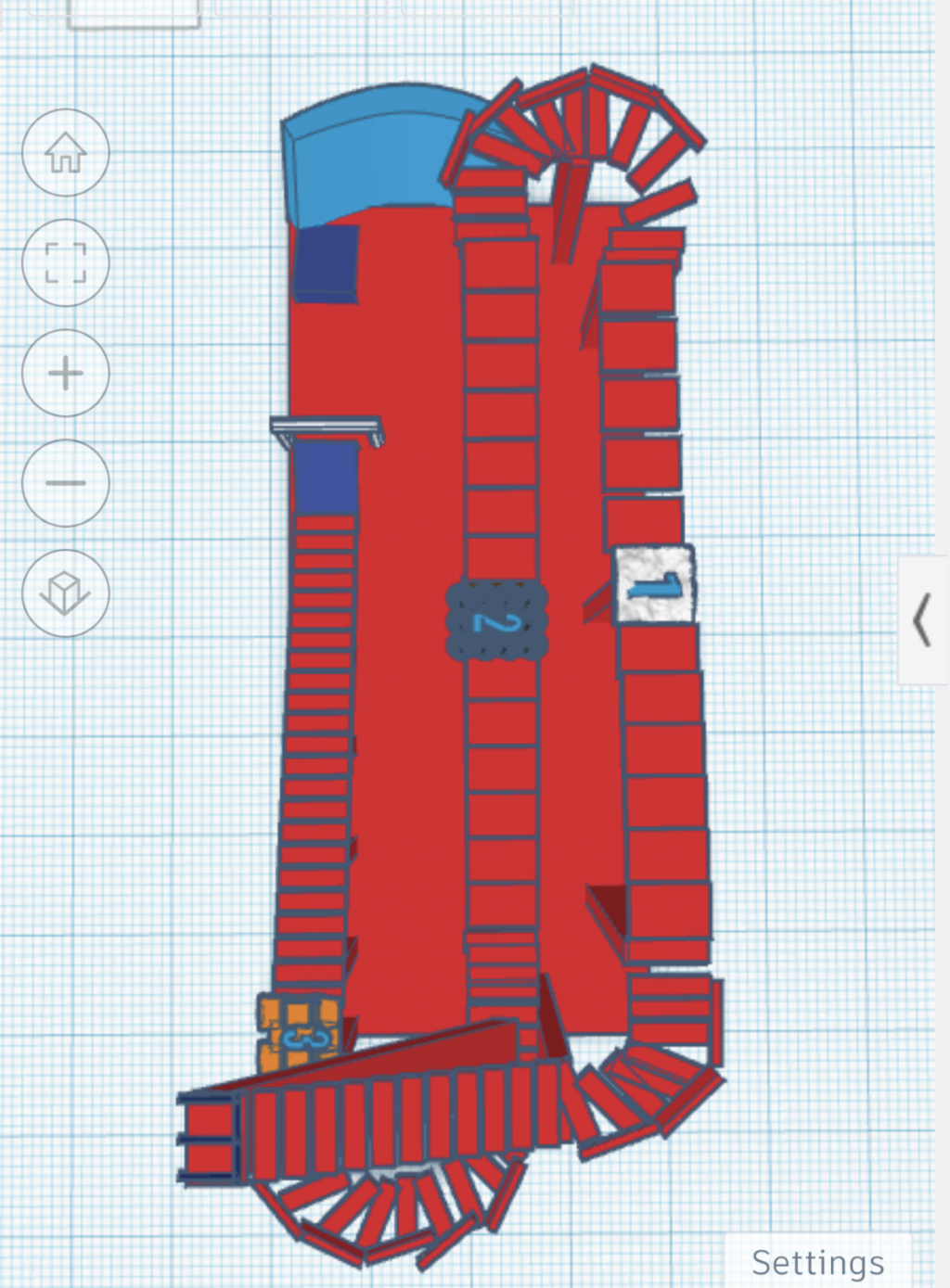

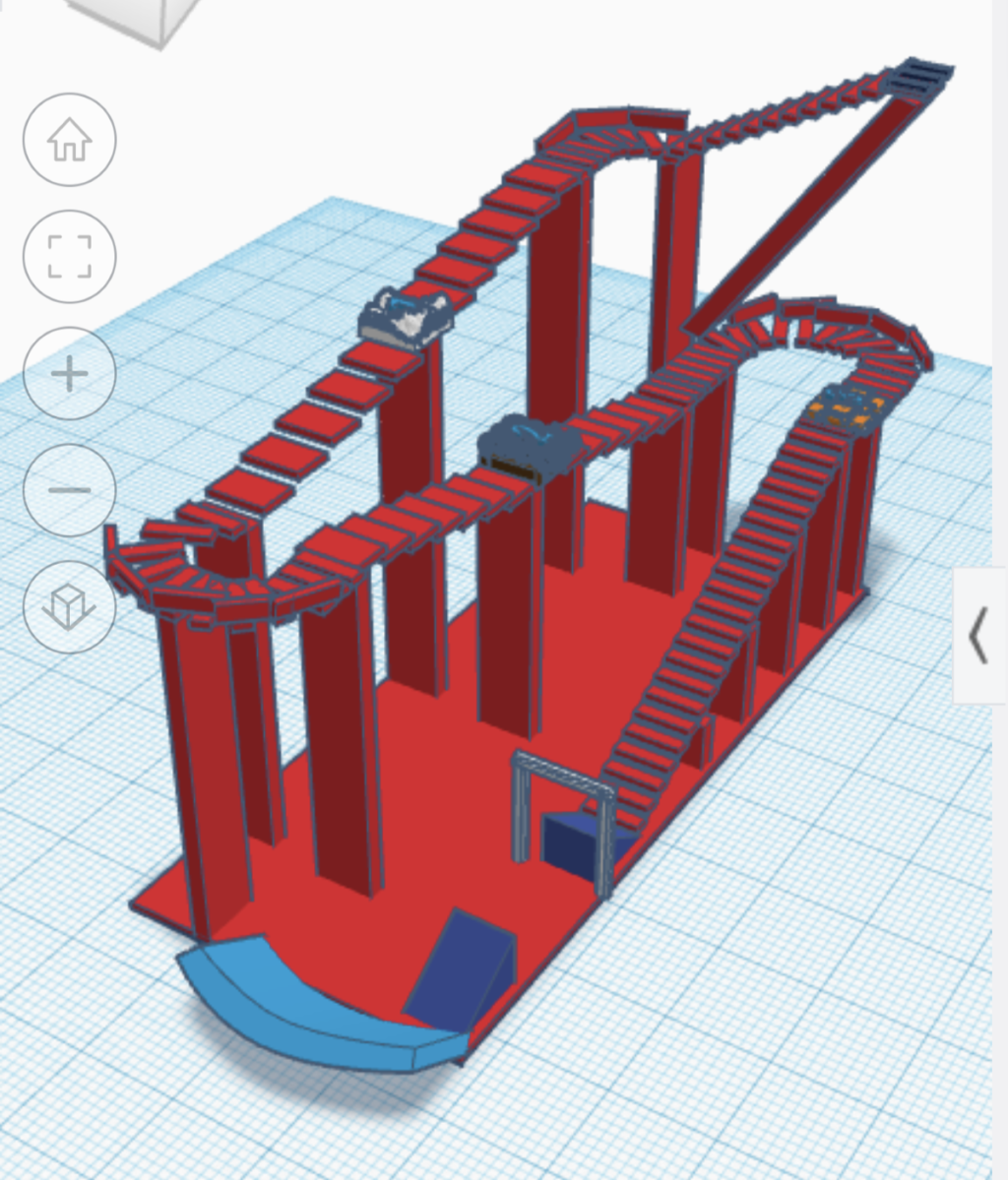

 * I know my model isn't smoothed out, and isn't finished, but I wanted to get my rough draft out there. It'll be side by side racing for the entire race, with each truck in there own lane the whole time.

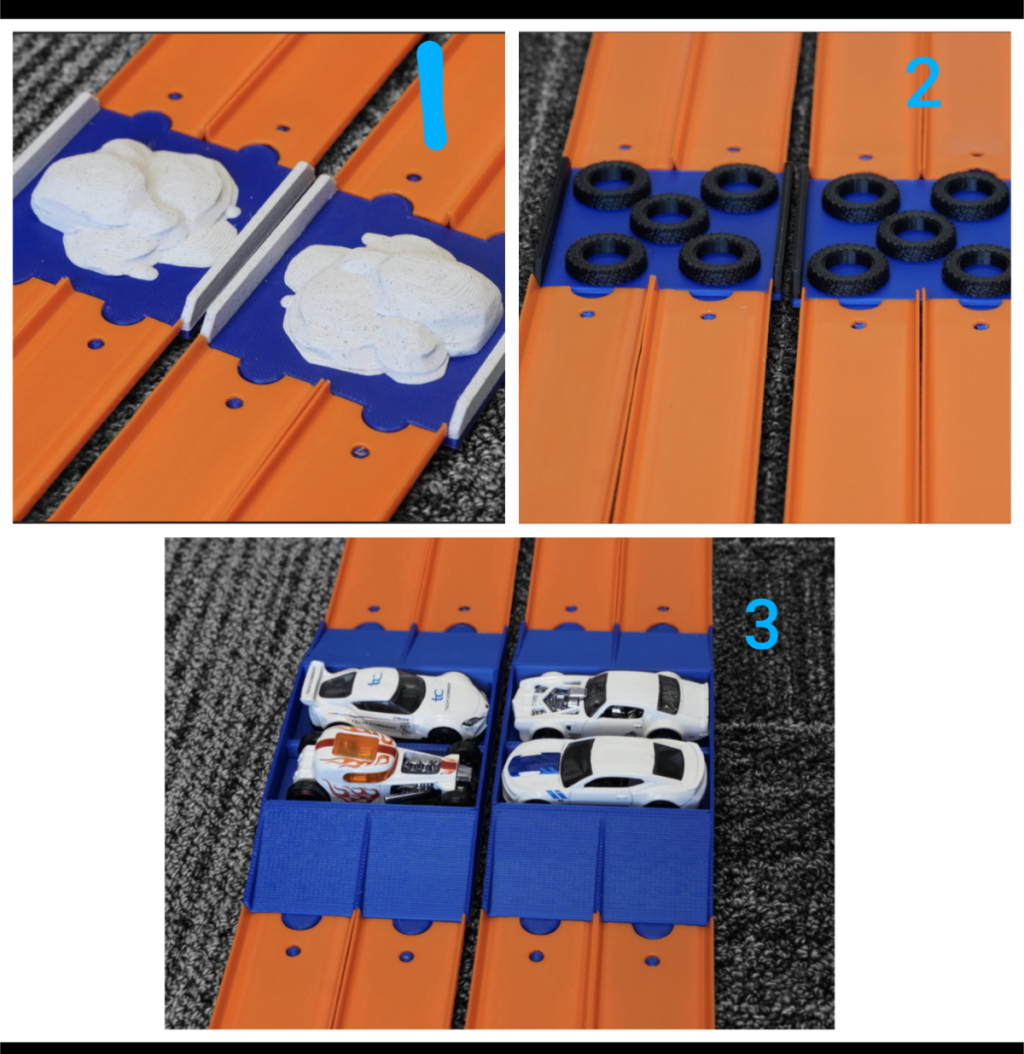

 * The numbers (1,2,3) coenside with monster truck obstacles I'll be putting into my track, that are hot wheel track compatible (that I found on Etsy). I think they will be an awesome addition to the track, and something new in diecast monster truck racing. I haven't done any testing yet, still waiting for them to be delivered.

I'm pumped to see what kind of Monster Truck mayhem this track can unleash! Drop your ideas and advice in the comments below. Let's build something truly legendary together! #MonsterTruckMadness #RedlineDerby #CustomTrackBuild

  • Obstical tracks look good, as far as angles, no substitution for testing, change, and test again. while testing to build my MT track, I found a combo of level and inclines made the cars more consistent, as you could control their speed. — dr_dodge
  • also seemed to make the cars "do interesting things" as they peel speed off, then back on — dr_dodge
  • Looks good so far. Can't wait to see what it looks like! — JBlotner42

I haven't posted in a while, so I wanted to get something up here, and show my progress so far. This has been going a little slow for me, I'm still trying to figure out where exactly to start building my track. I've seen some people build in their garage or shed, but here in Phoenix, it gets a little warm to do that. Even though my track will fit on a 4x8 plywood, I still need more space than just that, for the lighting, tripods, and to be able to work on my track

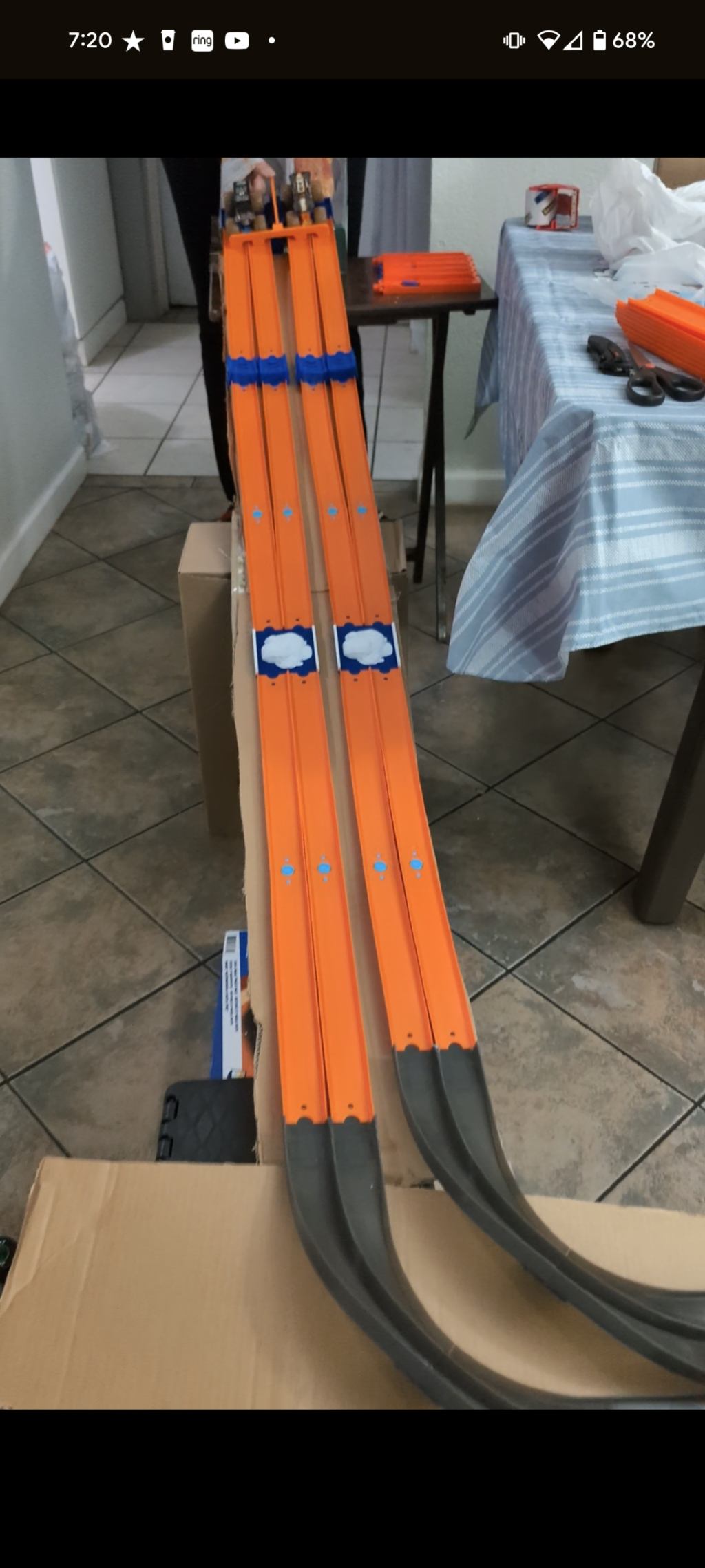

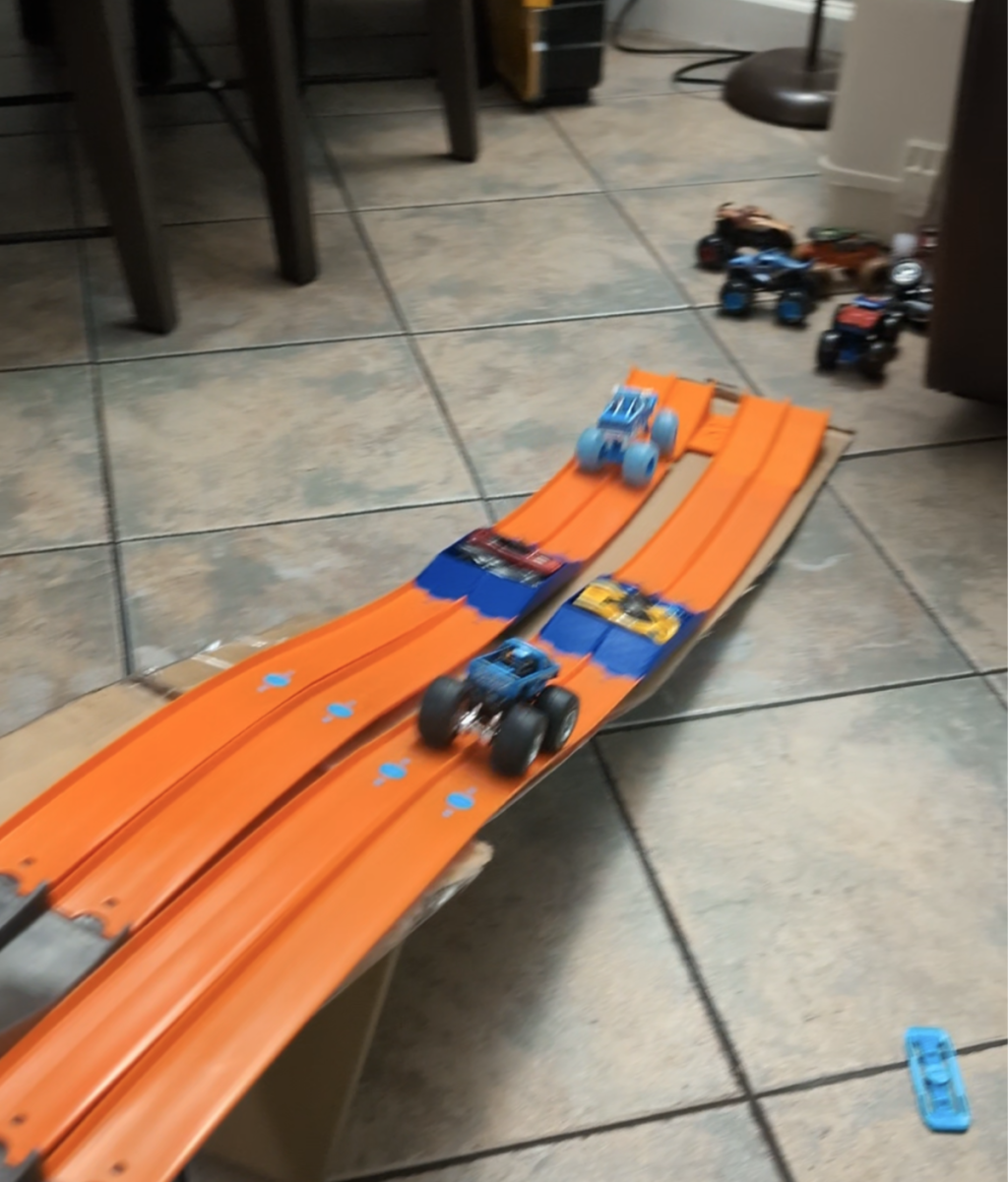

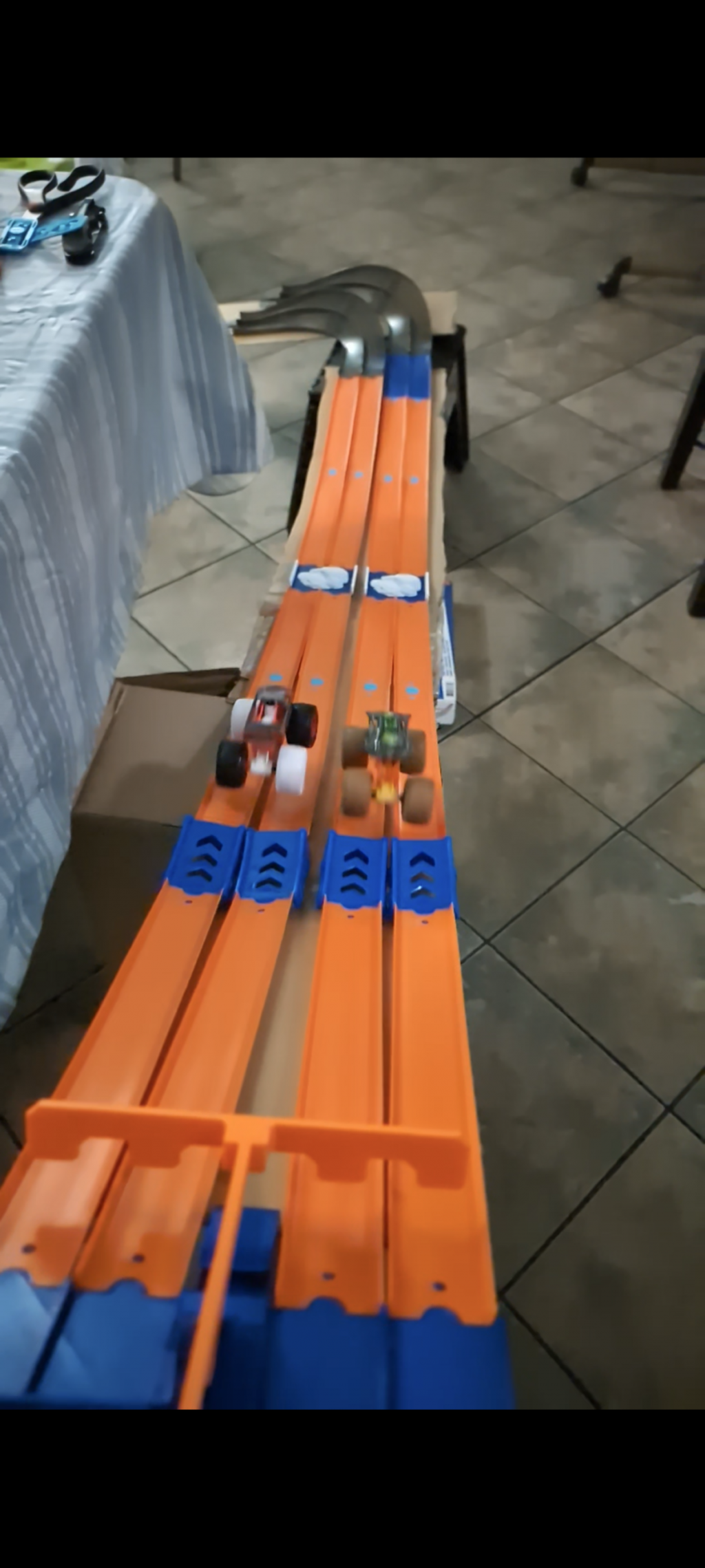

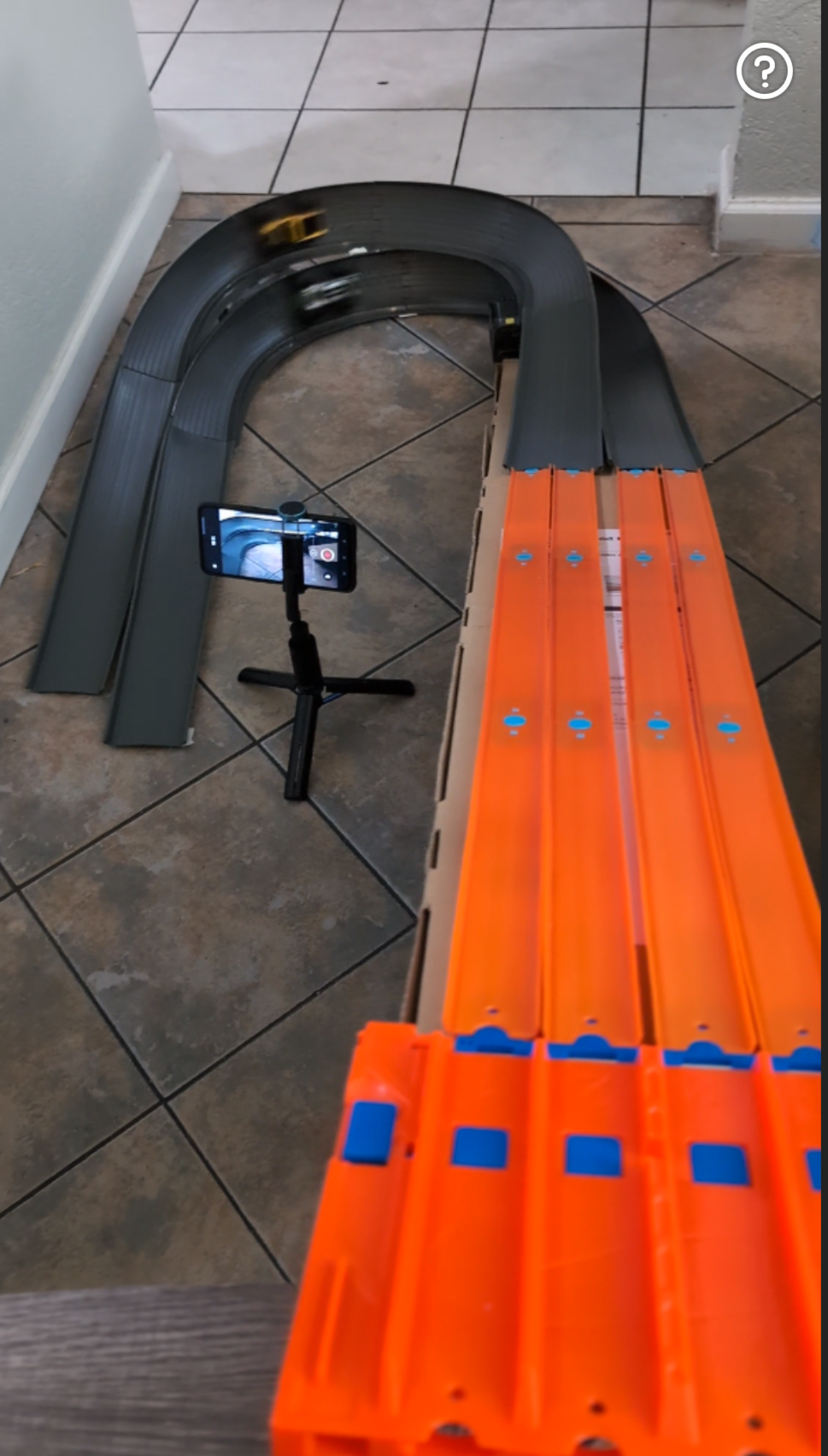

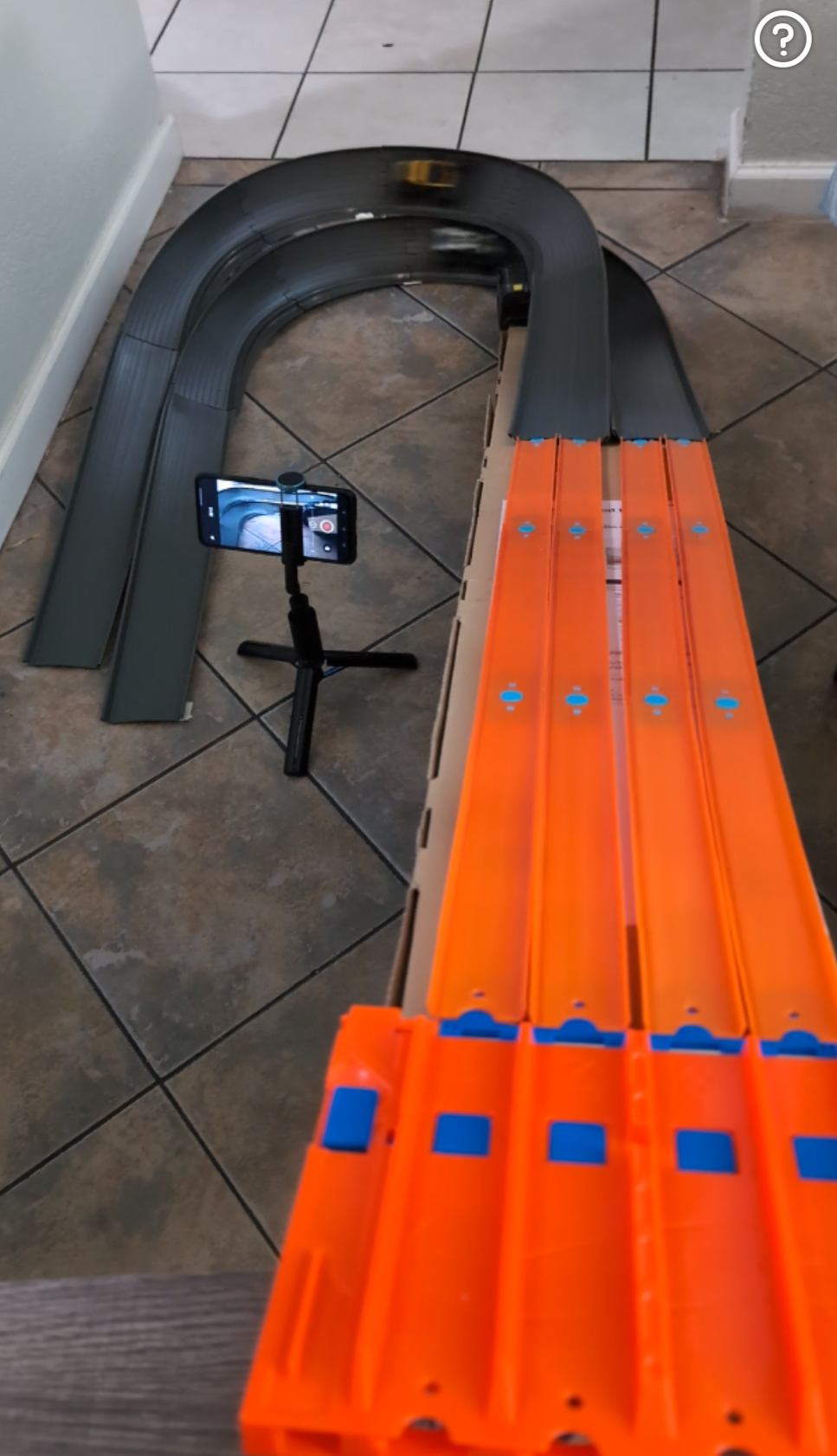

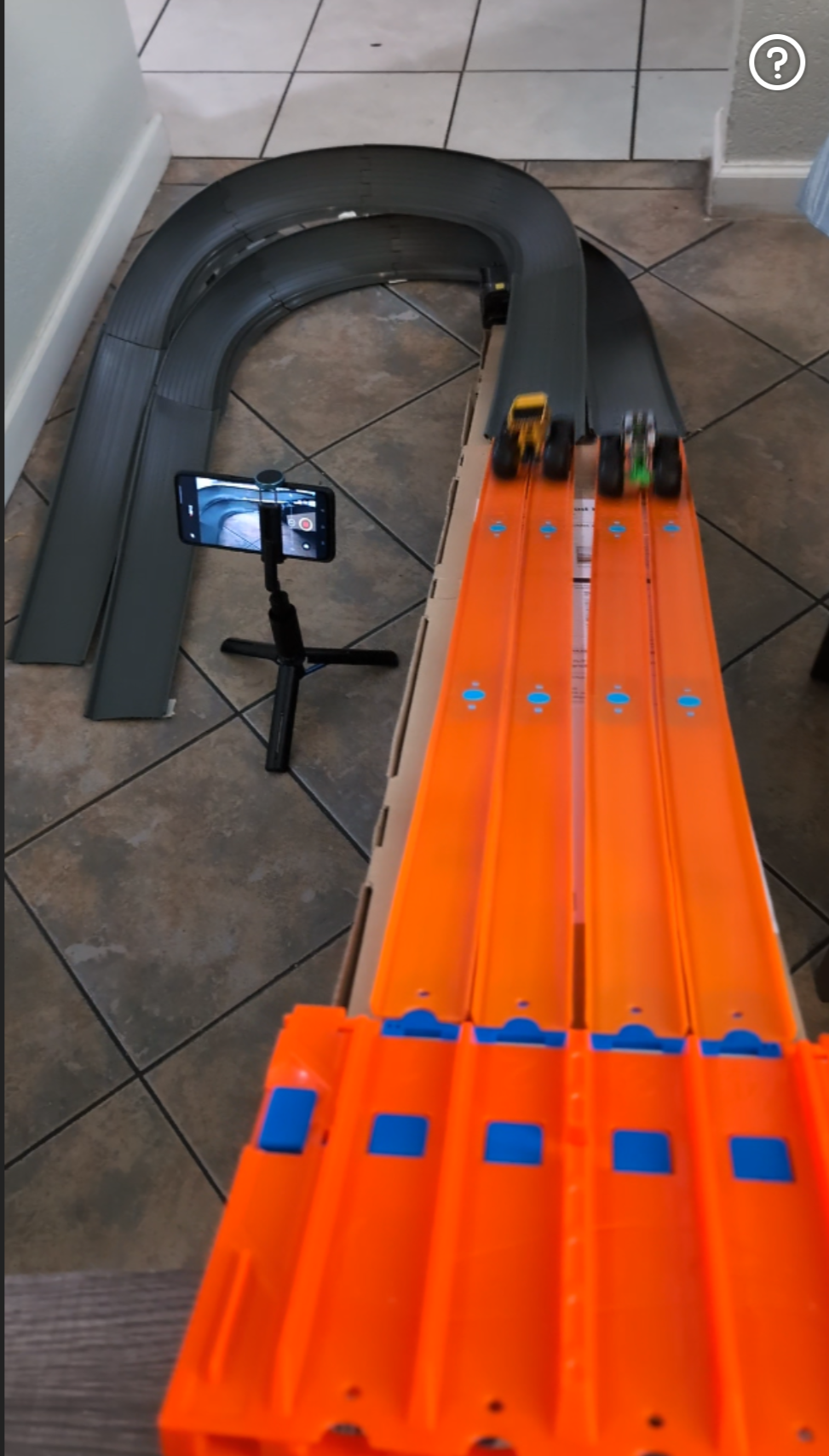

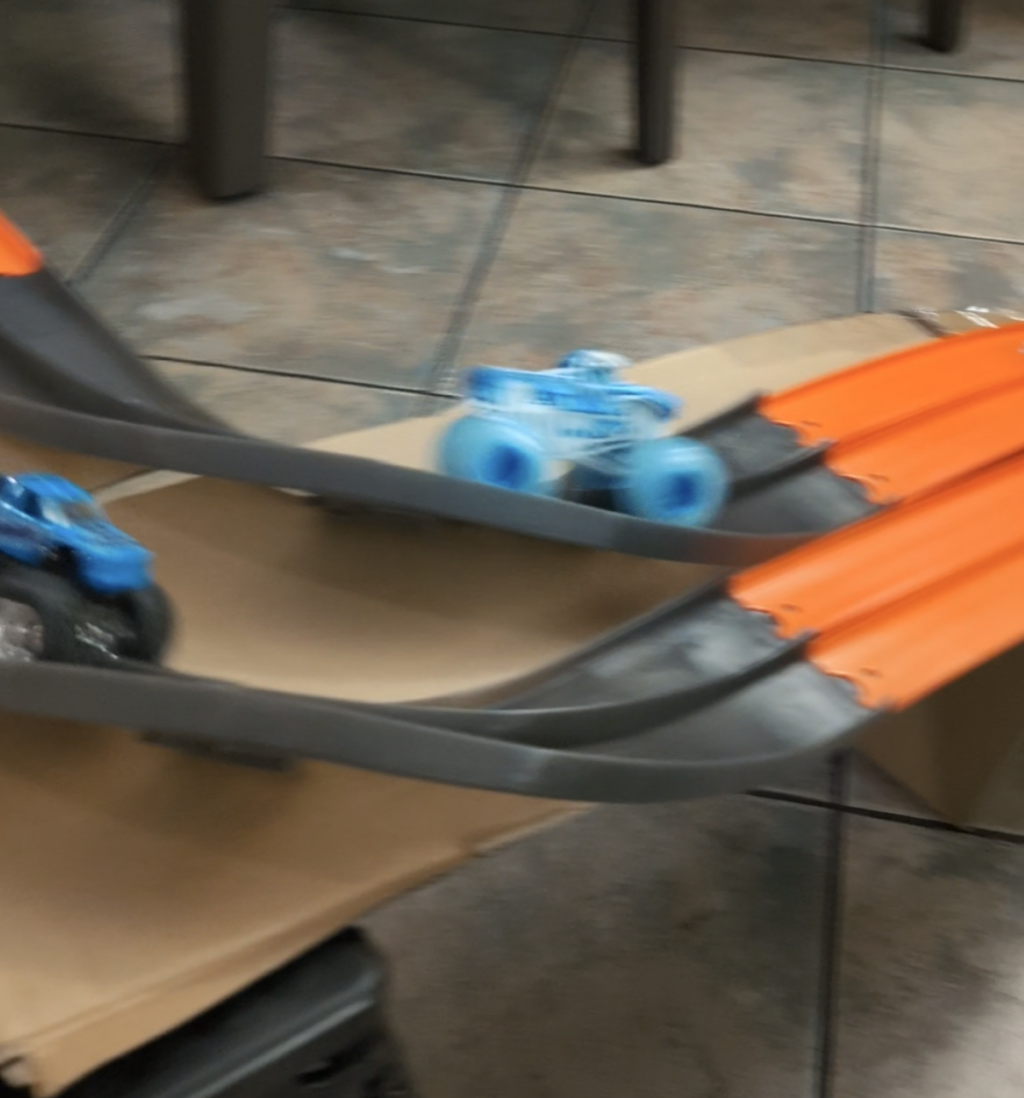

But untill that happens, I'll be testing different sections of my track. The included pictures are just a section of my track, roughly about 10 feet. It has multiple obstacles, the final track won't have these obstacles so close together, I just wanted to see how the trucks could handle them.

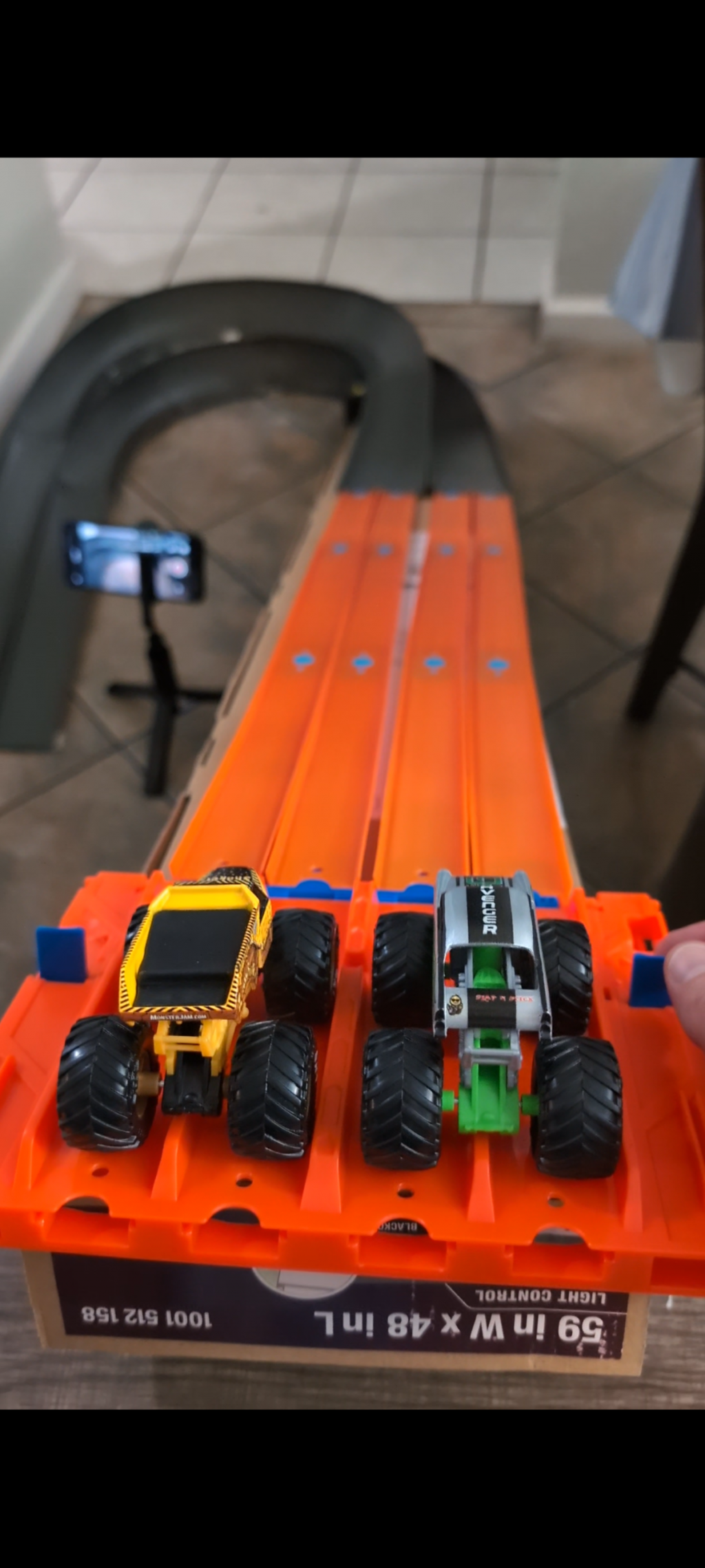

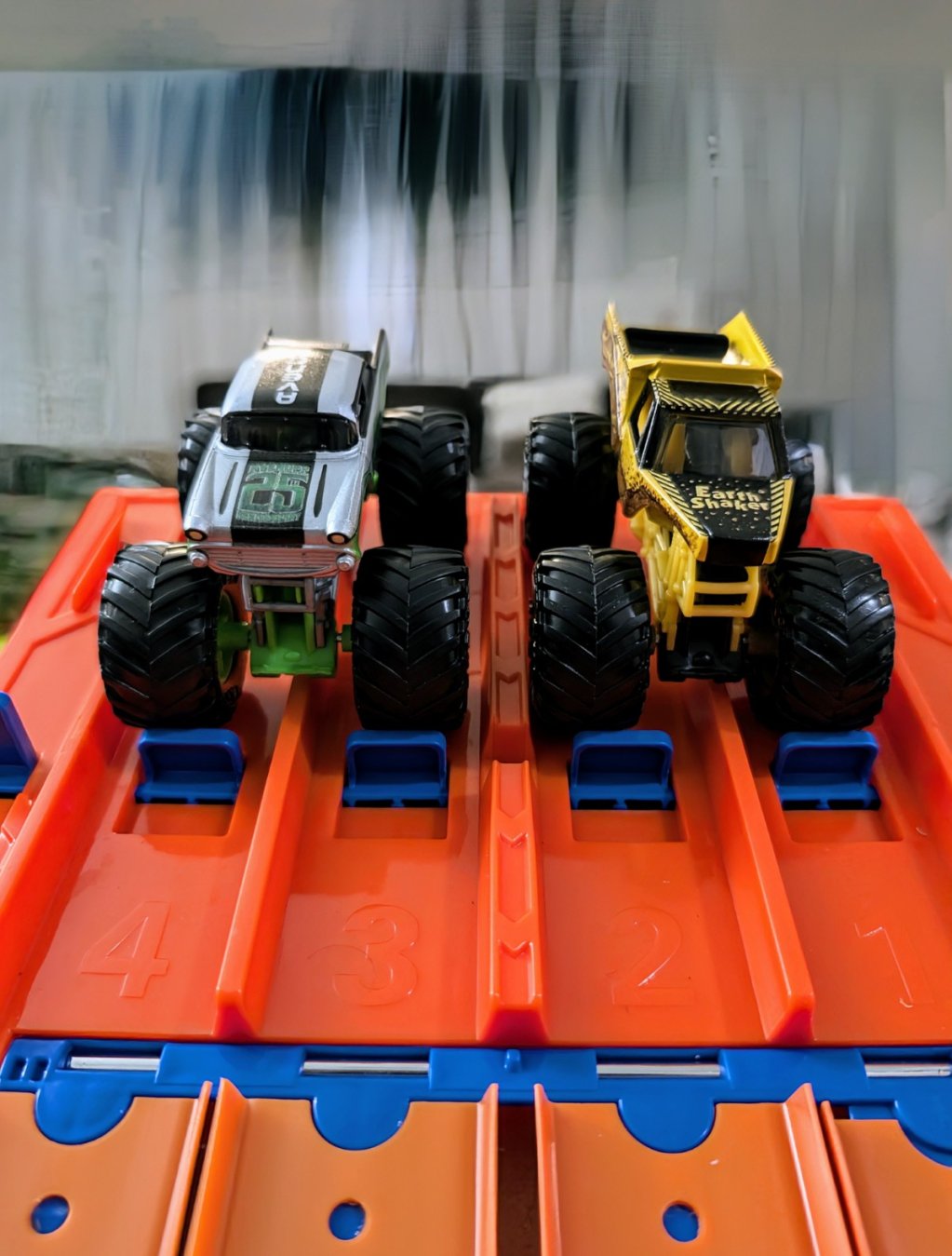

So far I have a manual launch gate, which will be upgraded soon. I'm trying to find a good electronic start gate, preferably on remote, that can handle 4 lanes wide. Next is a small jump followed by a small rock obstacle (that I found from Etsy). Some of the trucks were having trouble with this, and falling off the track, but only about 20%(ish). I might try to get some high guard rails for that specific spot, to keep the trucks on track. Following that is a 90 degree bank turn from trace racers. It has a nice bank turn, which is perfect for the trucks. I had a little trouble with the start and exits of the turn, since both 90 degree turns are exactly the same length, and I need an inside and outside lane. Following the turn is a car jump obstacle, followed by a final jump (both from Etsy)

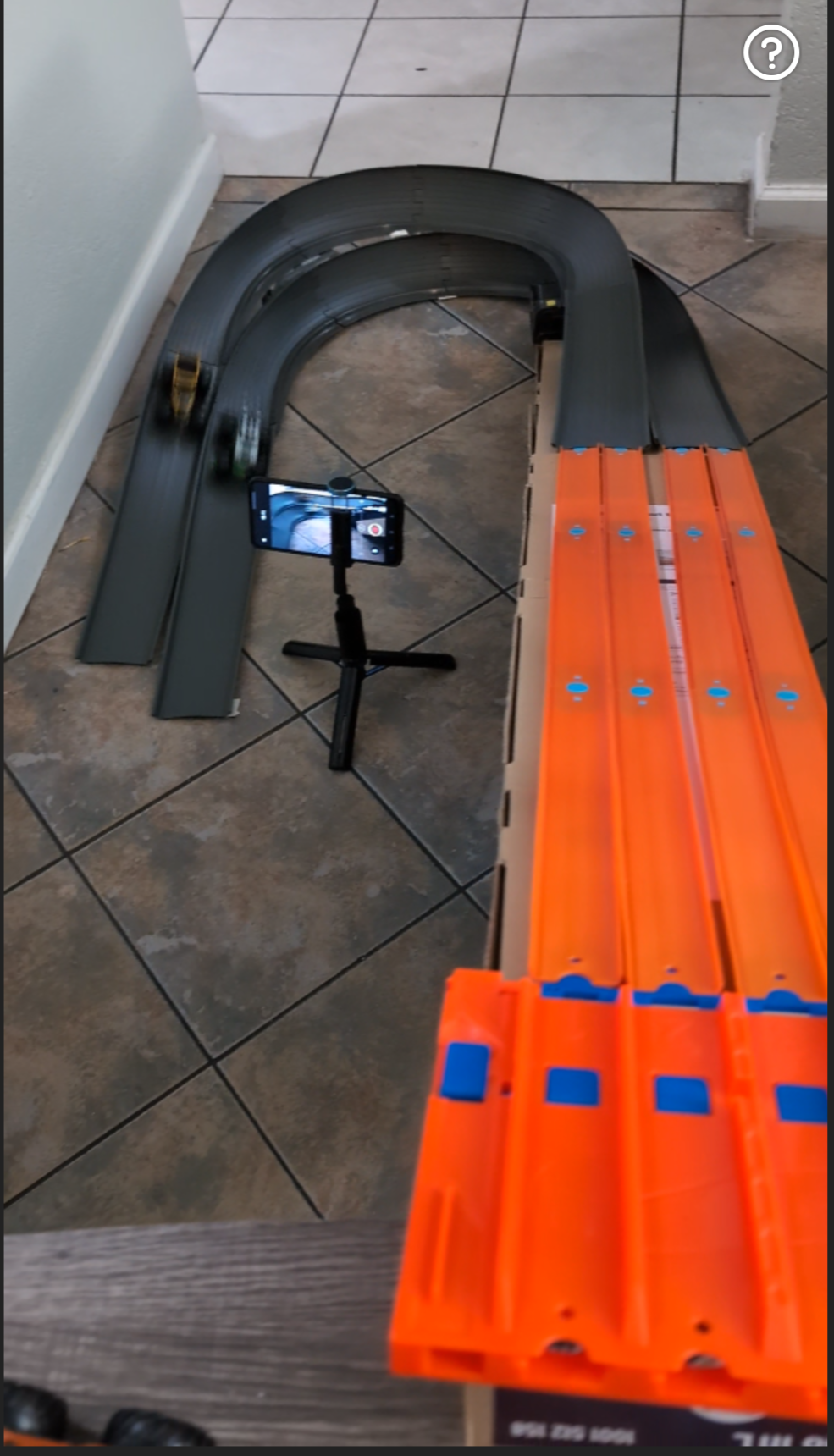

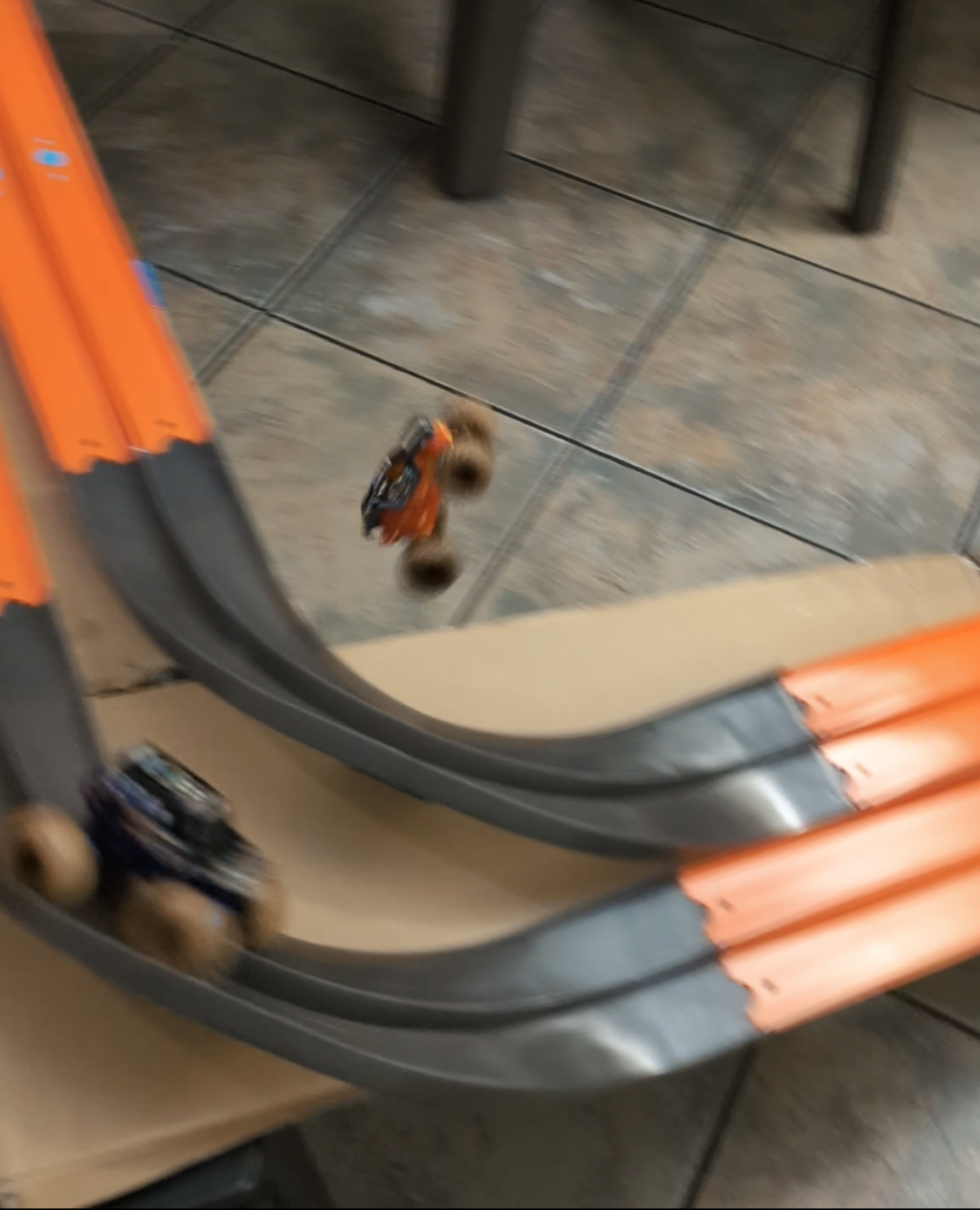

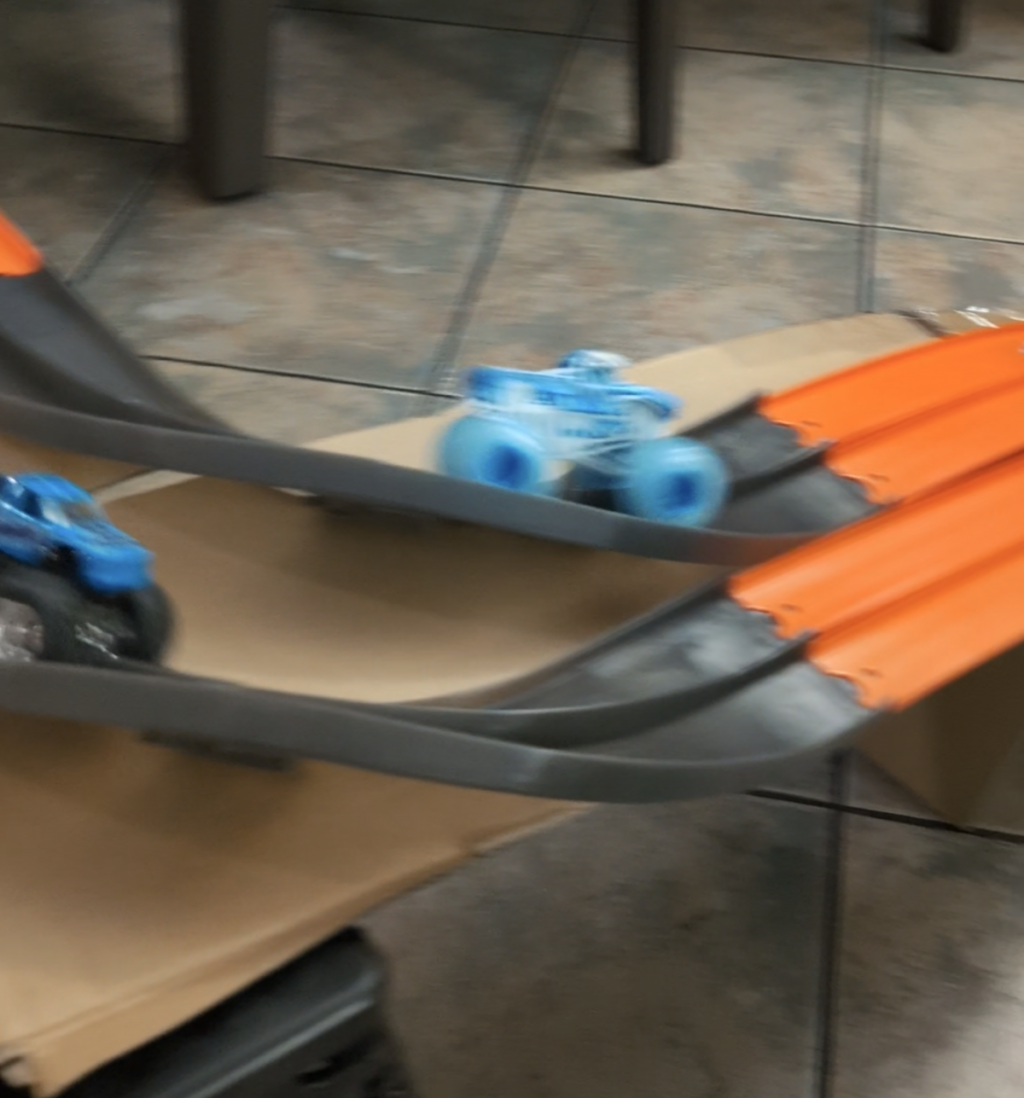

The entire track has a slope of about 10 degrees (maybe a little greater down the first half). Which I thought was good for the turn, because of the high bank on it. But maybe a little fast for the rest of the track.

Going forward I'll be buying some crash racers track, and having an entire lane for each Diecast truck. For the 180 degree turns, my plan was to make an inner lane and outer lane with the crash racers track. In theory, by taking a section (or 2) out of one turn (making it the inner lane), and adding it to the outer lane, I might be able to make a side by side 180 degree turn for Diecast monster truck. But that will be a post for next time.

Any tips, tricks or ideas would be greatly appreciated. Not all these obstacles will be this close together in the final version of the track. I was just testing to see how the trucks could handle them. The final version will only have 1 (maybe 2) obstacle per 8 foot section. Let me know what you think.

View member profile
CanesBart 6/24/24

How about a "Caronasaurus Rex" mecha godzilla like thing they used to have at monster truck races when I was young?  (It's a kinda stupid, robot T Rex that clumsily smashes cars, I think it was a backhoe with aluminun sheet "skin").  About 6" tall, between lanes at finish line.

Don't know why, but that's what I pictured when I saw your layout. :)

  • I think the Mecha Godzilla youre talking about is called Robosaurus. He used to be at Monster Jam shows in the late 90's and early 2000's, but hasnt performed since 2006. If I can find a 1:64 scale of one, I would put it into my display (once I start contructing it). The most recent pictures are only a section of my track, roughly 1/3 of my total track. Once I start building it, it'll be built up from a 4x8 piece of plywood, with the track being elevated with 2x4s. As far as the decorations go, I'm thinking of doing a Monster Jam arena theme. The top part having people in the stands (or attach some stands to the track), and have to bottom part being the area floor. Possibly add some garages for a pit stop on the floor area as well. The idea is to have it look like Monster Jam racing, that they would do at actual shows. Thats why im trying to incorporate multiple turns, jumps and obstacles in more course. My next round of pictures/videos will be showcasing the 180 degree truns i'll be putting together. Those should be up soon. Thank you for your comment, I very much appreciate it. — Spartacus0351
View member profile
CanesBart 6/26/24

When you are doing terrain, you'll need good ol boys!  I have a ton of "rural zombie hunters" in 1/72, but were way too big, and more like 1/64 scale.....which now seems like I was predestined to go from wargaming to diecast racing!  :)

I'll send you a rabble of em, painting all my 1/64 horror themed figs assembly line stylevl now that I need em too

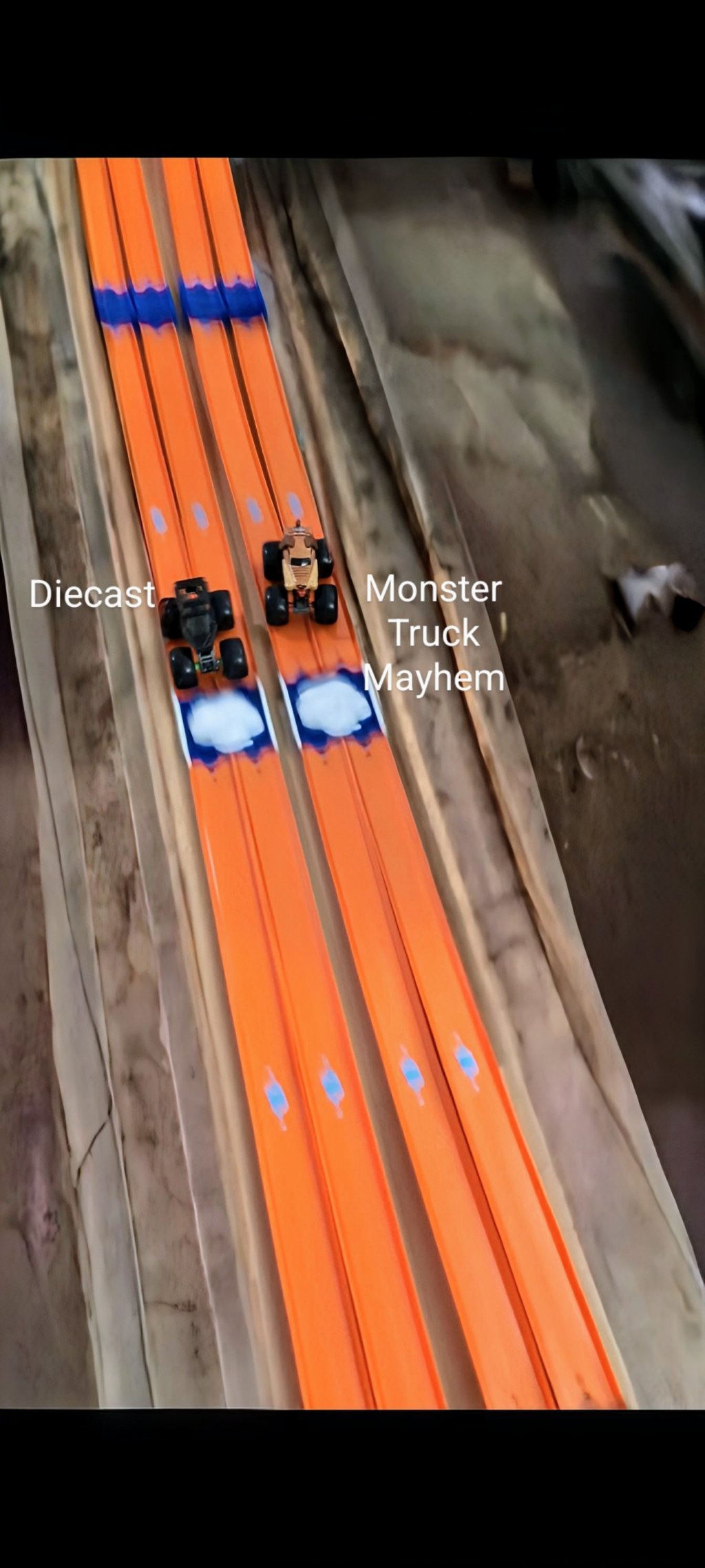

Check out my first YouTube short!  I've been working hard on the start of my diecast monster truck track, and it's finally time to put the first part to the test! Head over to my channel to see the action. Let me know what you think and any feedback you have! More test track to come. Thank you

  • put your link in your profile — dr_dodge
  • looks great so far — dr_dodge
  • That's bad ass! — JBlotner42
  • Thank you, I really appreciate your feedback. I just put the link to my YouTube channel in my profile. I'll be uploading some more videos soon, testing out different parts of the track. Then I'll assemble everything together. — Spartacus0351
